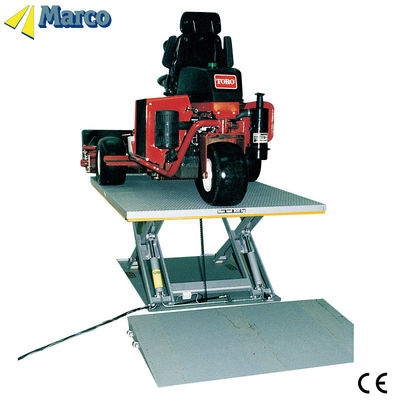

Marco loading dock is used on loading docks for the unloading and loading of vehicles.
Marco loading dock operates between the different levels of the vehicle and the loading dock.
It is designed for use in extremely difficult environmental and operational conditions and can also be provided for external use.
Marco loading dock are designed and equipped to withstand environmental and load stresses which frequently occur as point loads when vehicles cross the lift table.
As standard the loading dock tables are equipped with following:
platform in chequer plate
oilfilled minus side of the cylinders
reinforced platform with more profiles
service access hatch in platform
adjustable bottom stops for greater stability in lowered position
lifting lugs
two component paint finish to 120 my thickness
Main Specification:
1.Standard Options| Hot sales for 8-10 Ton Marco loading dock table with CE approved: | ||||||||
| Art.No. | Type | Capacity ( kg) | Platform (L*W) | Lift height (mm) | Own height (mm) | Lift time(s) | Motor (kw) | Weight(kg) |
| 860363 | M5-080160-D2K | 8000 | 3000*2000 | 1600 | 600 | 32 | 4.6 | 2320 |
| 860364 | M5-080160-D2K | 8000 | 3000*2400 | 1600 | 600 | 42 | 4.6 | 2500 |
| 860365 | M5-100160-D2K | 10000 | 3000*2000 | 1600 | 650 | 48 | 4.6 | 2410 |
| 860366 | M5-100160-D2K | 10000 | 3000*2400 | 1600 | 650 | 48 | 4.6 | 2600 |
