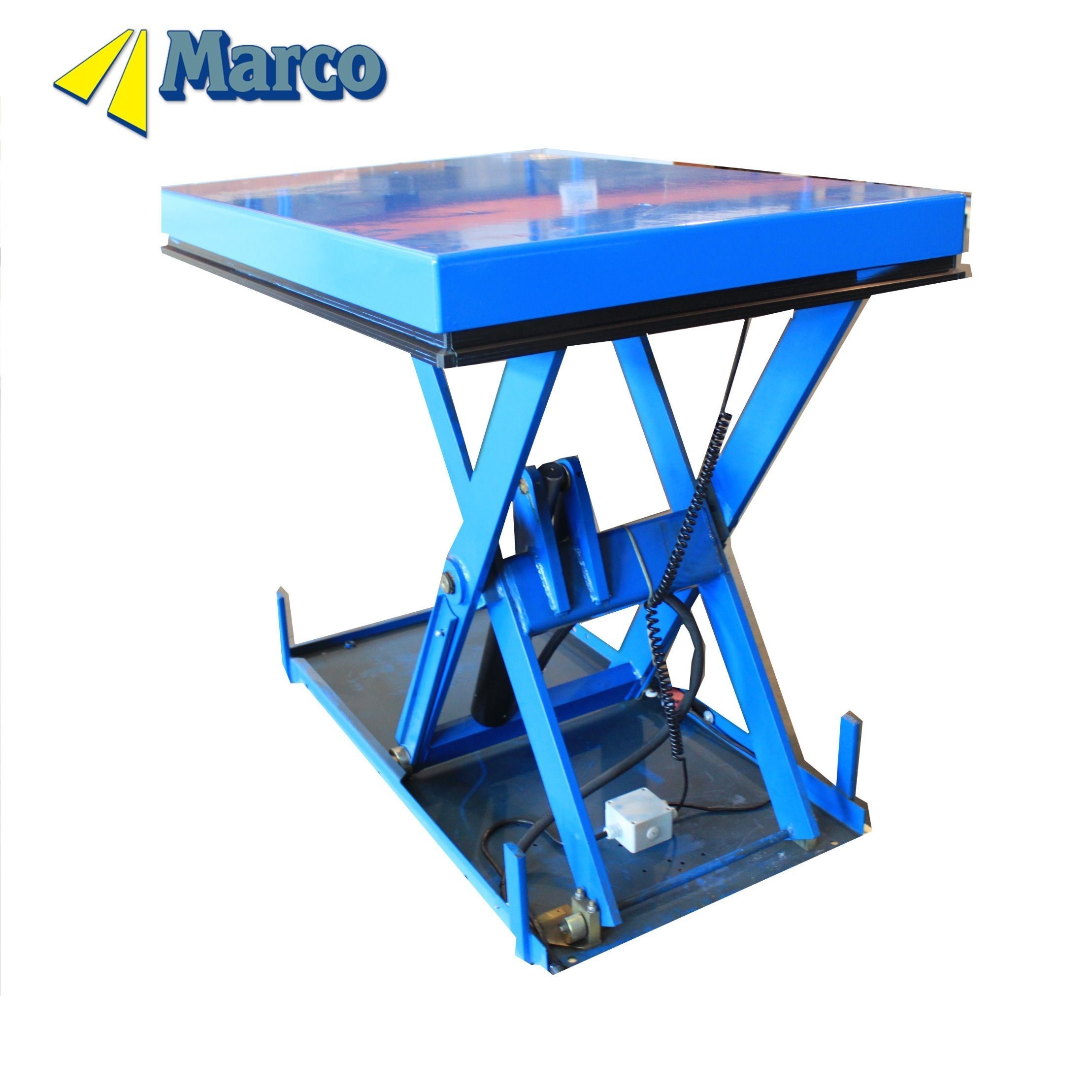

Customsized Heavy Duty Goods Hydraulic Scissor Lift Table
| SPECIFICATION | |||
| Capacity (Kg): | 2000 | Rated current (A): | |
| Stroke (mm): | 800 | Control voltage (V): | 24 |
| Closed height (mm): | 200 | Power pack location: | ext 3M |
| Platform length (mm): | 800 | Protection class: | IP55 |
| Platform width (mm): | 1350 | Hydraulic oil: | K2 |
| Lifting time (s): | 25 | Surface treatment: | ISO32 |
| Output (kW): | 1.1 | Colour: | RAL5019 |
| Power supply (V): | 415 | Lift category: | 1 |
| Frequency (Hz): | 50 | Declaration: | IIA |
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
