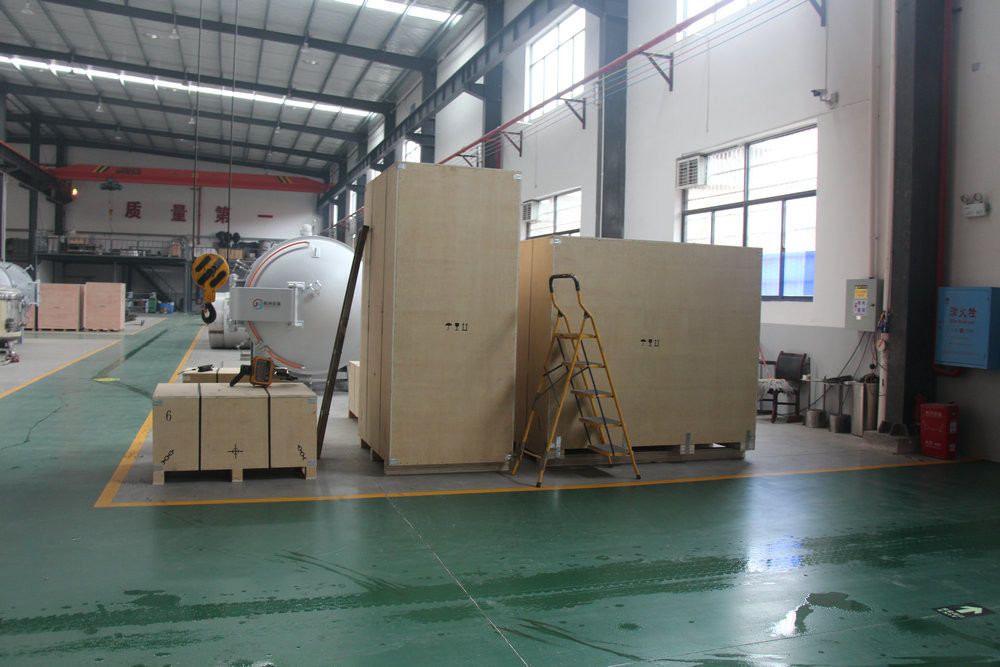

Carton, pallet, wooden case or according to customer's package requirements
Delivery Time:
30 working days
Payment Terms:
30% deposit + 70% T/T before shipping
Supply Ability:
20 sets per month
Gallery
Custom Made Vacuum Sintering Furnace With Touch Screen Control 2380 ° C
Product Description
Custom Made Vacuum Sintering Furnace With Touch Screen Control 2380 ° C
Vacuum Sintering Furnace Application:
Vacuum Sintering Furnace Widely used in rare earth permanent magnet materials, hard alloys, ceramic materials, titanium alloys and other materials vacuum sintering and diamond tool sintering (welding) and vacuum heat treatment process. The series of furnace type structure is mature and practical, and the furnace type and configuration are more. It is a general-purpose equipment used in the field of powder metallurgy sintering.
| Volume (L) | 36 | 96 | 175 | 432 | 784 |
| Effective heating zone (mm) | 300X300X400 | 400X400X600 | 500X500X700 | 600X600X1200 | 700X700X1600 |
| Limit temperature (°C) | 1600 | 1600 | 1600 | 1600 | 1600 |
| Power (KW) | 60 | 90 | 150 | 210 | 300 |
| Temperature control method | Japanese island electric thermostat | ||||
| Vacuum system | Slide valve pump + Roots pump or increase diffusion pump as required | ||||
| Rated power supply voltage (V) | 380V | ||||
| Rated heating voltage (V) | According to the design, configure the transformer | ||||
Graphite Heating Element Furnace Technical parameters and specifications:
- Inflation pressure ≤ 0.1MPa (absolute pressure)
- High temperature metal/graphite material heating system selection to facilitate different material requirements. (This item is user selectable)
- The main components of the control system are brand-name products to minimize the failure rate.
- The control system is equipped with alarm functions such as over-temperature, over-pressure and water-breaking. The system can automatically process according to the needs, which can reduce the damage to the equipment and ensure the safety of personnel.
- The temperature control system uses Japan Island Electric.
