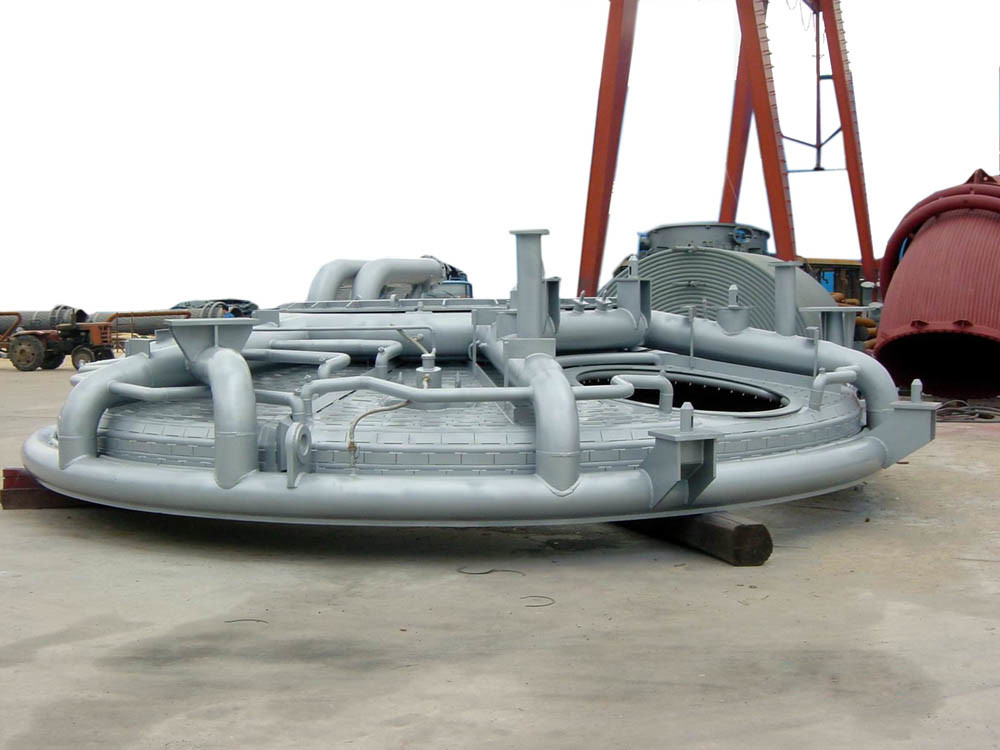

Electric Arc Furnace Water Cooled Roof Body Pipe water cooled roof

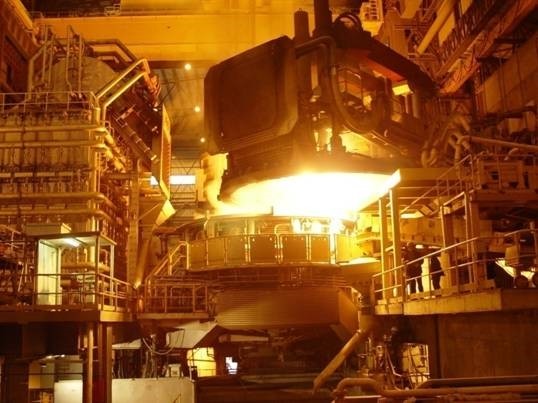

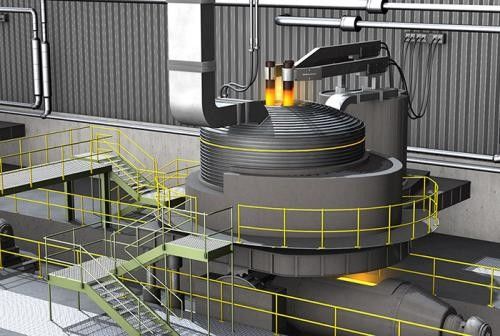

Mini electric furnace(steel,Iron)
Characteristic:
1. Smelting temperature is flexible to be controlled, meet different steel grade production needs.
2. High heat efficiency, atmosphere inside furnace can be controlled.
3. Can remove the phosphorus, sulfur, oxygen and other impurities and improve steel quality.
4. Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5. Equipment is simple and shorter technological process.
| Rated Capacity | Max. Capacity | Shell Inner Diameter | Electrode Diameter | Transformer Capacity |
| T | T | MM | MM | KVA |
| 5 | 10 | 3200 | 300 | 4000 |
| 10 | 18 | 3600 | 350 | 5500 |
| 15 | 24 | 3800 | 350 | 8000 |
| 20 | 30 | 4000 | 400 | 9000 |
| 25 | 35 | 4200 | 400 | 12500 |
| 30 | 45 | 4400 | 400 | 12500-25000 |
| 40 | 55 | 4600 | 450 | 16000-3000 |
| 45 | 65 | 4800 | 450 | 16000-40000 |
| 60 | 85 | 5400 | 500 | 25000-60000 |
| 80 | 100 | 6100 | 500 | 30000-80000 |
| 100 | 120 | 6400 | 550 | 40000-80000 |
